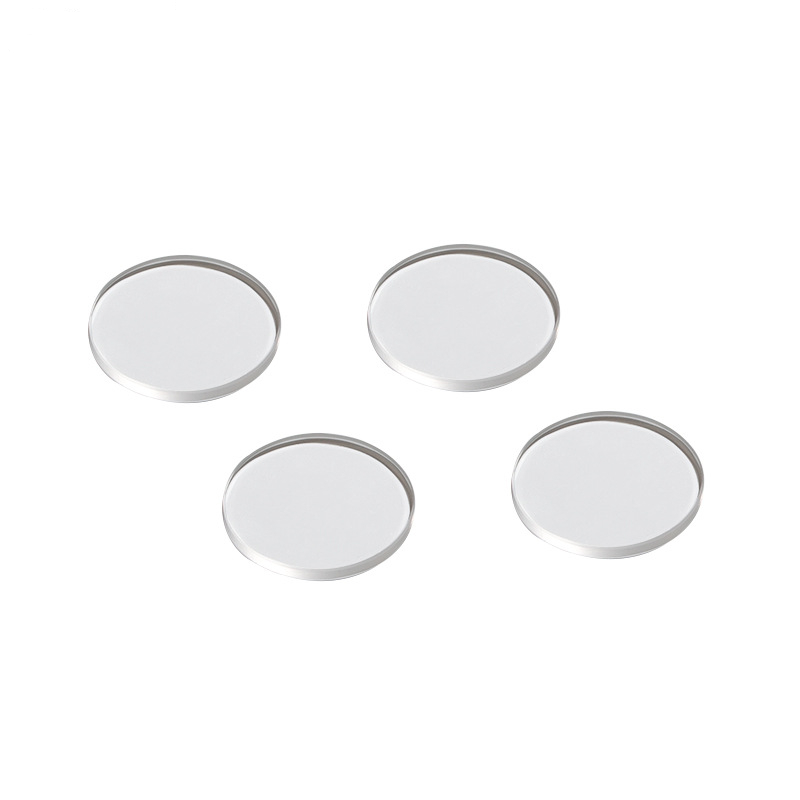

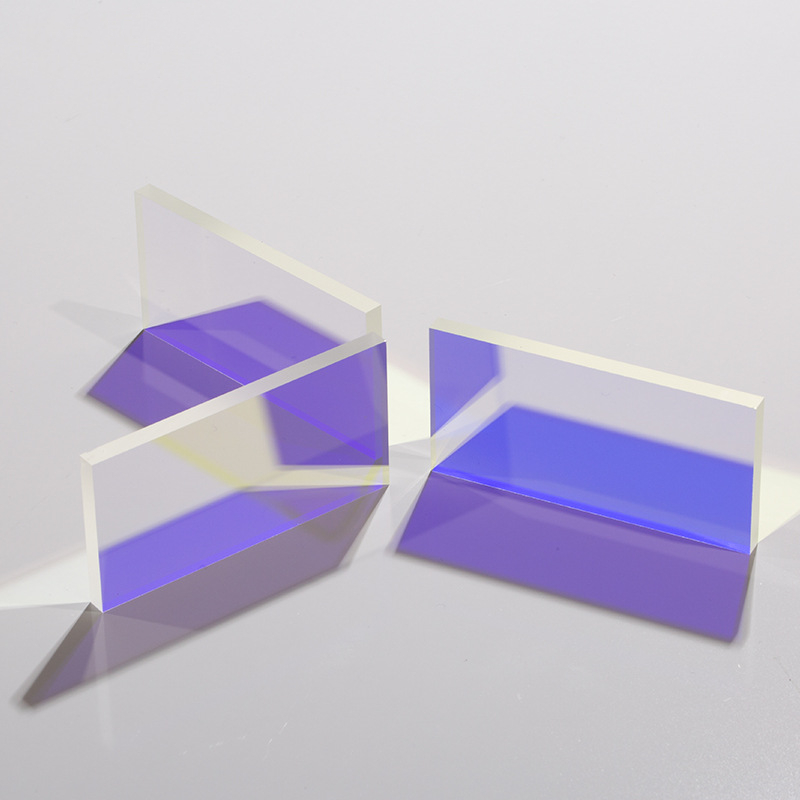

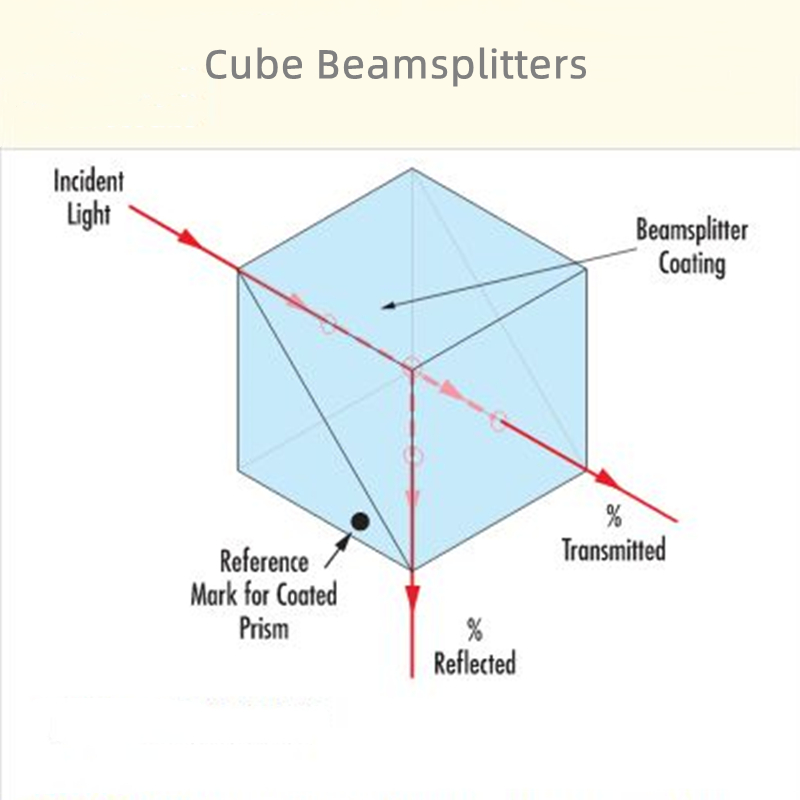

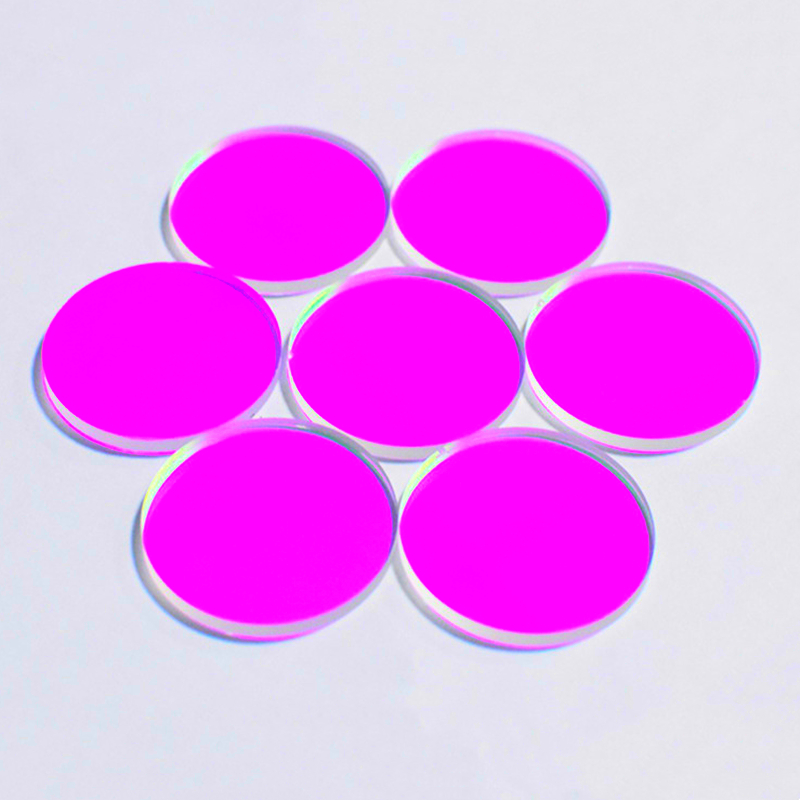

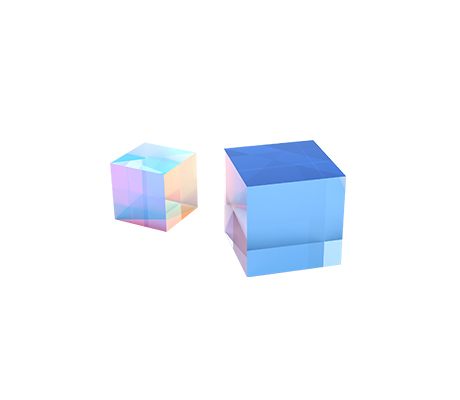

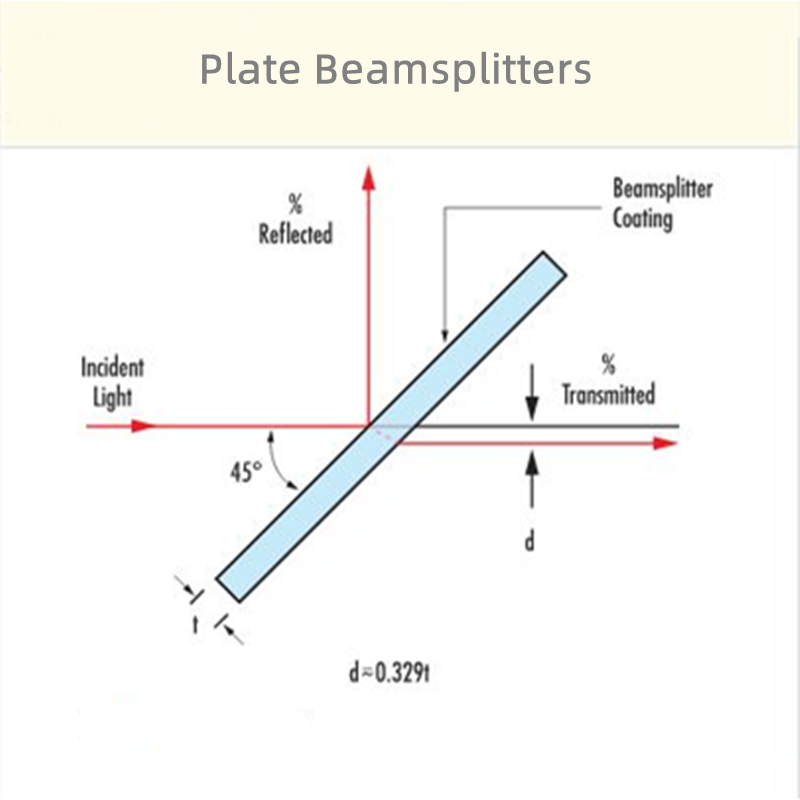

Beamsplitters are optical components used to split incident light into two or more separate parts at a certain ratio. Common beam splitters are plate Beamsplitters and Cube Beamsplitters. Depending on different coatings, the ratio of reflection and polarization state can be controlled. We offer a wide range of types and materials of beamsplitter components.

MaterialH-K9L Optical Glass
Surface Accuracyλ/ 2 (per inch) @ 633 nm
Parallelism＜ 1 arcmin
Surface Quality40-20
Clear Aperture90%
Dimensions Tolerance+0.0/-0.25mm
Thickness3mm±0.2mm
BevelProtective Bevel 0.2~0.5mmX45°
Angle of Incidence (AOI)45° Design
CoatingS1 Beam Splitting Coating： R/T ±10% (AVG of Designed Bandwidth) S2 AR Coating：Ravg＜1% (AVG of Designed Bandwidth)
