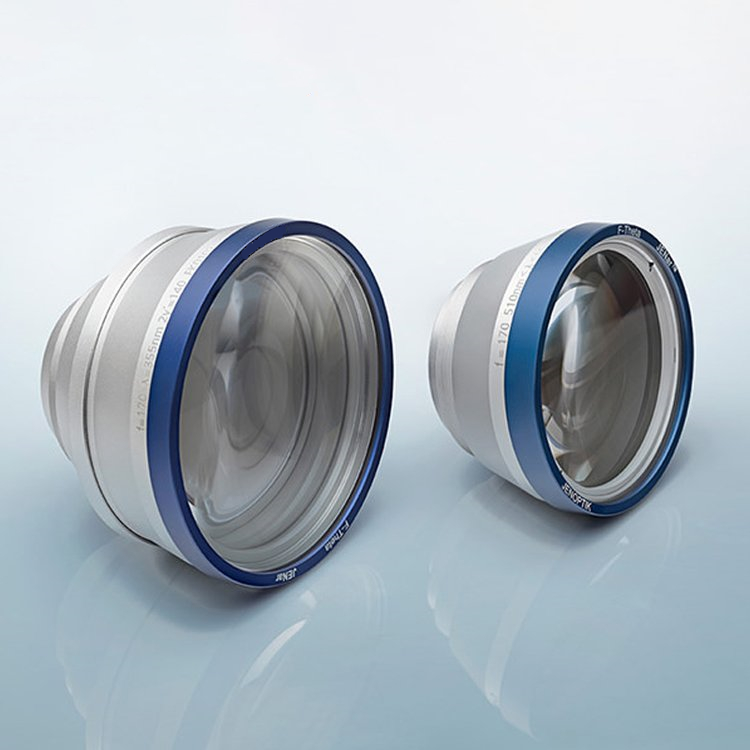

Laser f-theta telecentric scanning field mirror

Laser f-theta telecentric scanning field mirror

Laser f-theta telecentric scanning field mirror

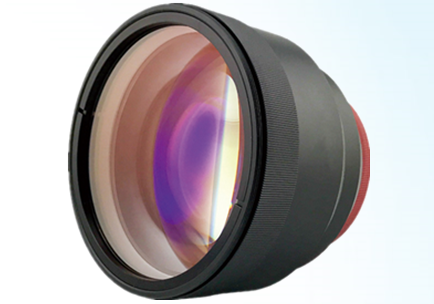

f-theta telecentric scanning lens
Laser f-theta telecentric scanning field mirror

Laser f-theta telecentric scanning field mirror

f-theta telecentric scanning lens
Laser f-theta telecentric scanning field mirror

Laser f-theta telecentric scanning field mirror

f-theta telecentric scanning lens
Laser f-theta telecentric scanning field mirror

Laser f-theta telecentric scanning field mirror

f-theta telecentric scanning lens

Mirror protection

Diamond-like carbon film protection of lens.
Lightweight

Lightweight lens design.

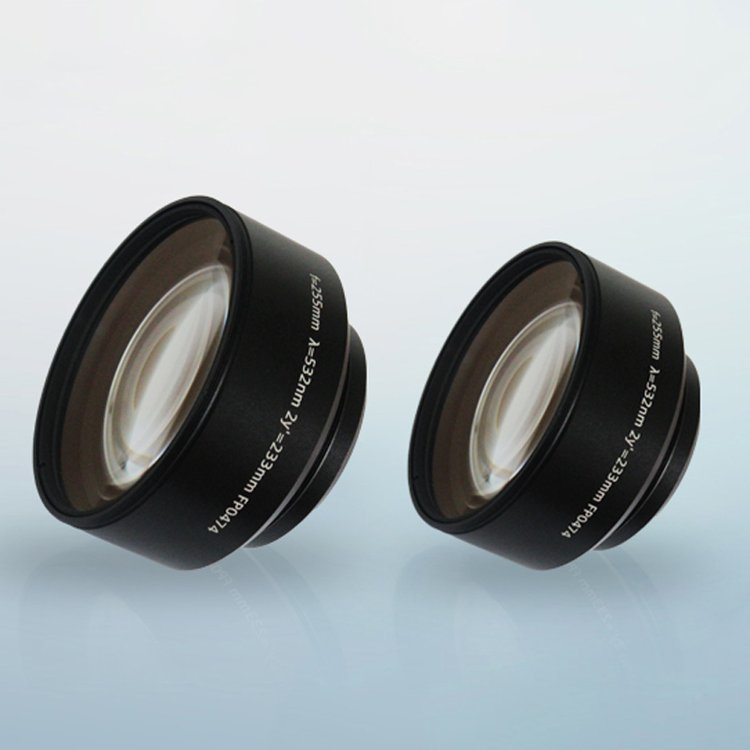

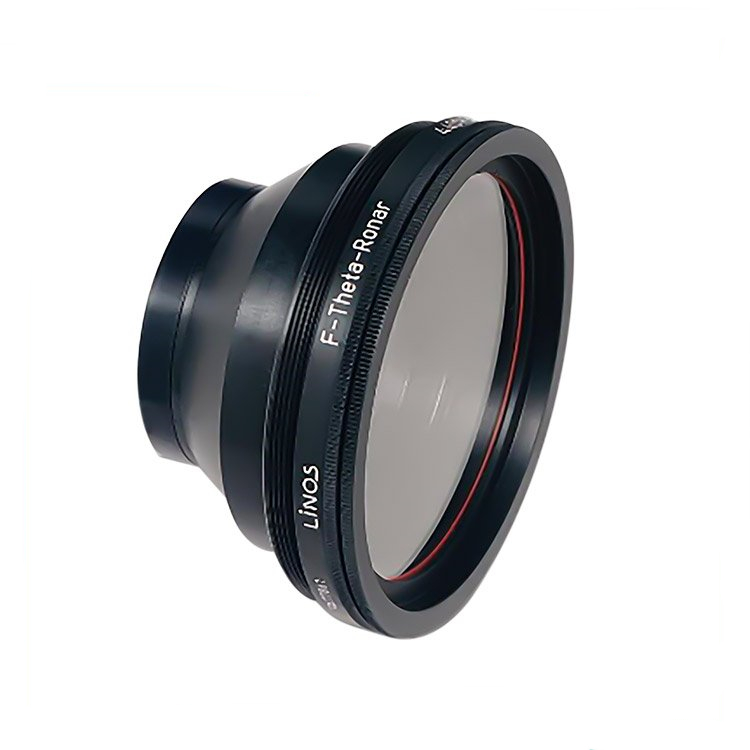

Laser f-theta telecentric scanning field mirror is a specially designed scanning lens. By making the exit pupil of the lens infinitely far away in the image space, the main light of the focused beam is perpendicular to the focal plane at any field angle. The telecentric scanning lens has special advantages in reducing the distortion of the focusing spot and drilling angle, and is suitable for high-precision laser applications, with the wave bands covering 355nm, 532nm and 1064nm, It has the characteristics of high damage threshold.

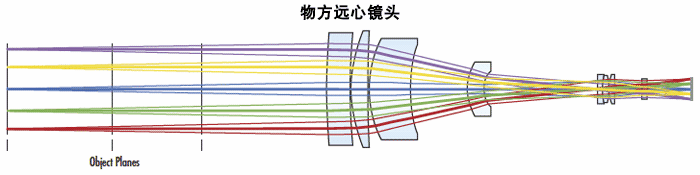

Structural sketch

application area

Optical Solutions

To provide customers with optical processing and optical solutions....
